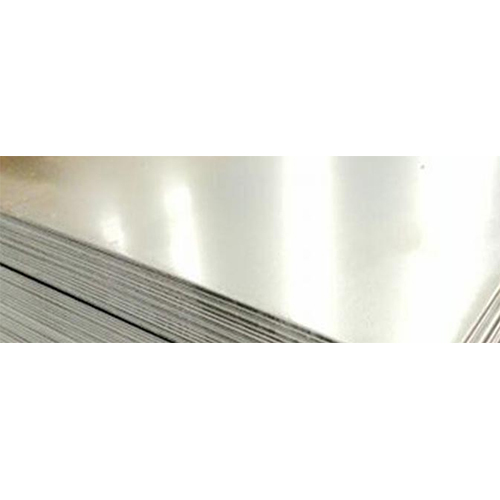

Alloy 20 Plates
Product Details:
- Alloy Yes
- Surface Treatment Powder Coating
- Product Type Iron
- Grade Alloy 20
- Shape Plates
- Application Industrial
- Color Gray
- Click to View more
X
Alloy 20 Plates Price And Quantity
- 100 Kilograms
Alloy 20 Plates Product Specifications
- Gray
- Plates
- Iron
- Yes
- Industrial
- Powder Coating
- Alloy 20
Product Description
Chemistry
| Ni | Cr | Mo | Mn | Cu | Si | C | S | P | Cb+Ta | Fe |
Min | 32.5 | 19.0 | 2.0 | - | 3.0 | - | - | - | - | 8.0 x C 1.0 | - |
Max | 35.0 | 21.0 | 3.0 | 2.0 | 4.0 | 1.0 | 0.06 | 0.035 | 0.035 | - | Balance |
Specifications
- ASME SA 240, ASME SB 366, ASME SB 463
- ASTM A 240, ASTM B 366
- ASTM B 463
- ASTM B 473
- EN 2.4660
- UNS N08020
- Werkstoff 2.4660
Physical Properties
- Density: 0.278 lb/in3 annealed
- Melting Point: 2525-2630F
- Electrical Resistivity: 651 Ohm-circ mil/ft
| Temperature, F | 70 | 212 | 392 | 572 | 752 | 842 | 932 |
| Coefficient of Thermal Expansion, in/inF x 10-6 | - | 8.16 | 8.37 | 8.62 | 8.62 | 8.84 | 8.91 |
| Thermal Conductivity | 6.7 | 7.57 | 8.56 | 9.53 | 10.5 | - | - |
| Modulus of Elasticity, Dynamic psi x 106 | 28 | - | - | - | - | - | - |
Mechanical Properties
- Ultimate tensile strength, ksi : 80
- 0.2% yield strength, ksi : 35
- Elongation, % : 30
- Hardness MAX, Brinell : 217
Typical Tensile Properties Bar
- Temperature, F : 70
- Ultimate Tensile Strength, ksi : 91
- 0.2% Yield Strength, ksi : 48
- Elongation, % : 45
- Charpy Impact V-notch, ft-lbs : 200
